The WaterFall is a rich, three-dimensional analog BBD chorus and vibrato that adds movement without sacrificing the character of your instrument. Its lush, musical voice has made it a long-standing choice for guitar, bass and keyboards, from subtle widening to deep, contemporary modulation.

Switch between Chorus and Vibrato, then choose the restrained or more pronounced intensity range to move from classic shimmer to seasick pitch movement. Push Depth and Speed for rotary-speaker-style textures, or keep them low for gentle dimension that sits naturally in a mix. The WaterFall is built to make modulation feel organic, immediate and inspiring.

Analog BBD modulation
The all-analog BBD circuit produces a warm, fluid response with a strong sense of depth and space.

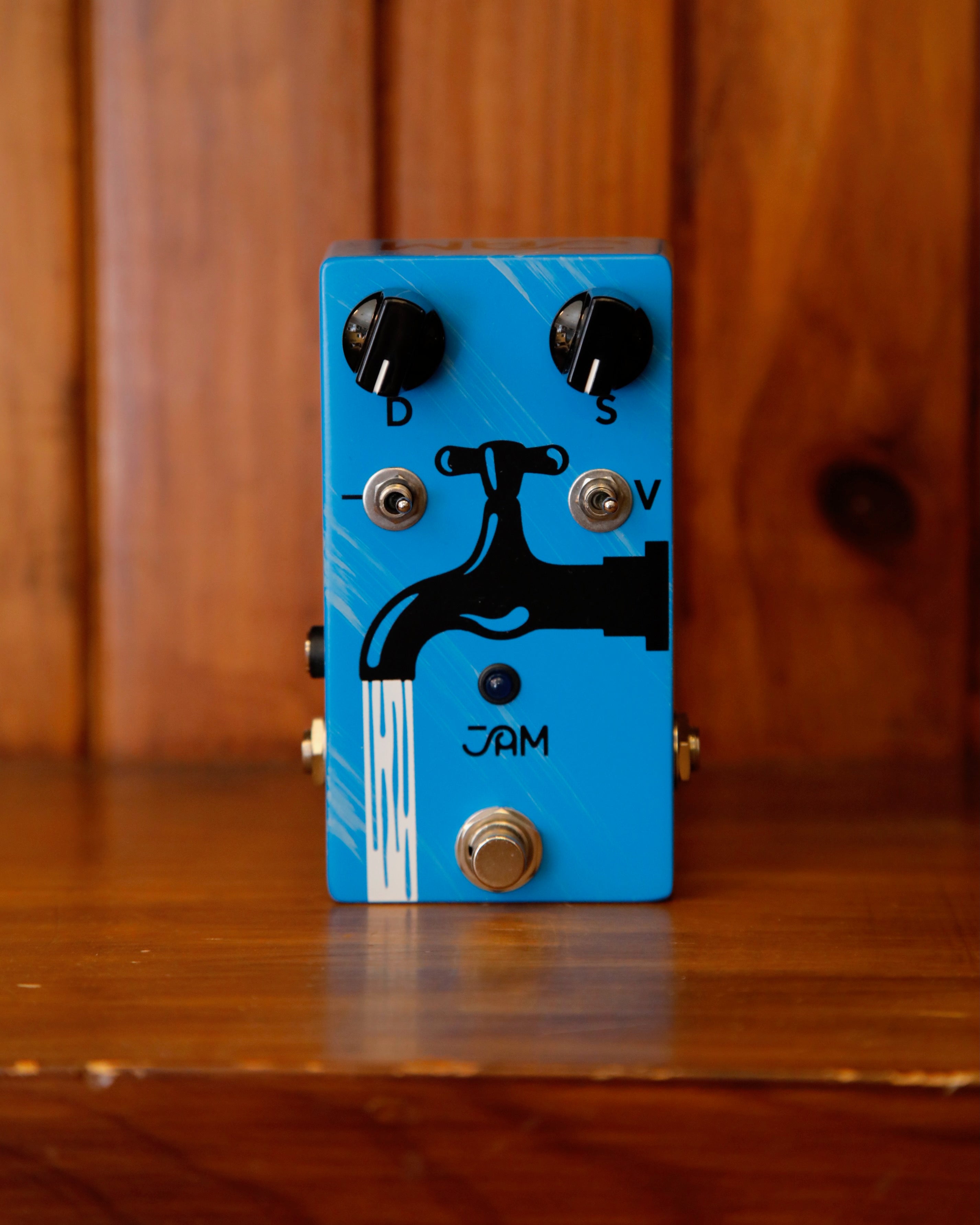

Chorus and Vibrato
The C/V toggle selects chorus or vibrato. A second +/- toggle chooses a subtler or more pronounced modulation range.

From shimmer to rotary
Depth controls modulation intensity and Speed sets rate. High Depth and Speed settings create Leslie- style rotary effects.

Internal range control
An internal trimmer adjusts the maximum modulation speed.

• Bypass: true bypass
• Circuit: analog BBD
• Power: 9V DC, centre-negative
• Current draw: 47 mA
• Dimensions including jacks and controls: 7.5 x 12 x 5.6 cm / 2.9 x 4.7 x 2.2 in
• Weight: 300 g / 0.66 lb
